50mm Box Section Handrail Bracket – SCB60
£31.00 (Excluding VAT)
Product Designation :
SCB60 Scaffold Bracket
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Available 7-10 days from order
Technical Information

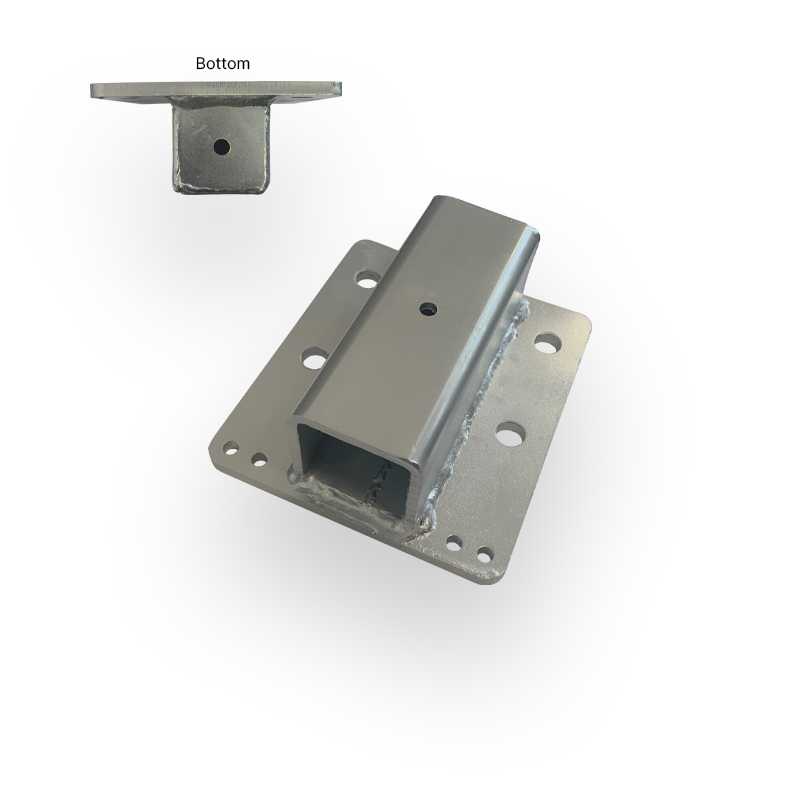

The SCB60 has four 14mm diameter fixing holes (for CS Bolts) and four 8mm diameter fixing holes (for self drill screws), with a welded 50x50mm box section (150mm long). It can be used as a scaffold restraint bracket for punching scaffolding tubes vertically from a solid base material. Made from zinc plated mild steel.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The drop forged fitting has been manufactured and tested according to EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
