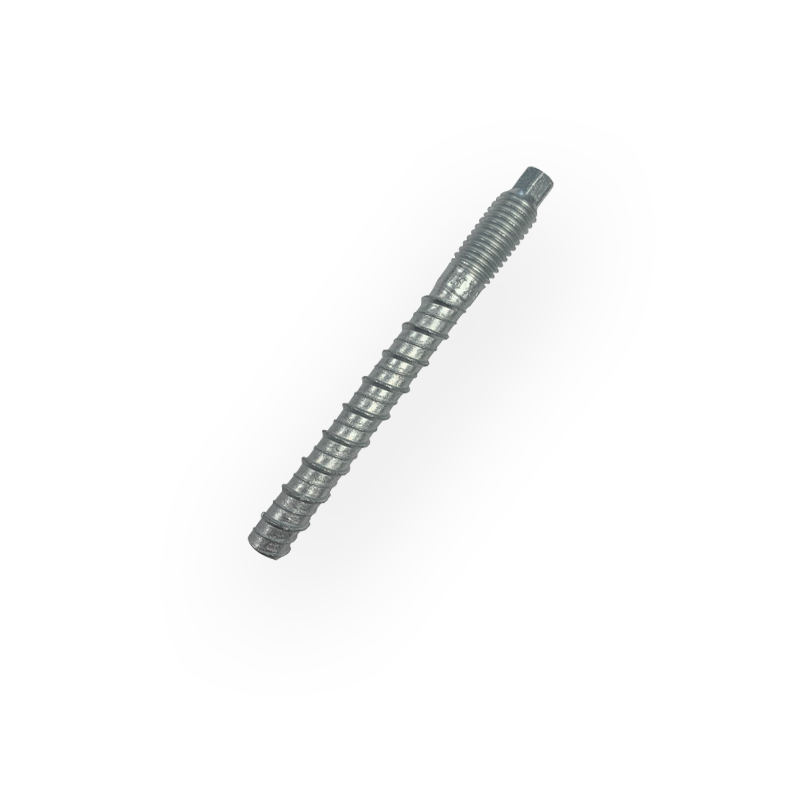

Box (25) 10/12*118 CS Stud Screw ZF M12 Thread – 10mm Pilot Hole – CSS10118

£36.25 (Excluding VAT)

Product Designation :
CSS

Type :
CS Stud Screw with Metric Thread

Material :
Hardened Steel

Finish :
500 Hours SST finish

Load Class (TG20) :
Light to Heavy Duty

SKU: CSS10118 Category:

Technical Information
Stud type version of the CS Bolt, a single fixing solution for the majority of construction materials which are very easy to install and have high pull out and shear values. Fixture can be secured using nut and washer or stud can be extended using a threaded adaptor and stud. In Scaffold/ Access markets a Ringbolt or Eye can be attached to secure tubes and standards. They can be used close to an edge without breaking the substrate. Suitable for brick, wood, marble, block & stone.

Load Data
Please contact us for further information on maximum Tensile Load Data (kN).

Quality Assurance
Loads available for C20/25 Concrete – Preliminary tests must be carried out to ascertain allowable loads before the use of the fixing in any other application.

NB – Recommended loads are limited by suitability of base material and structure.
