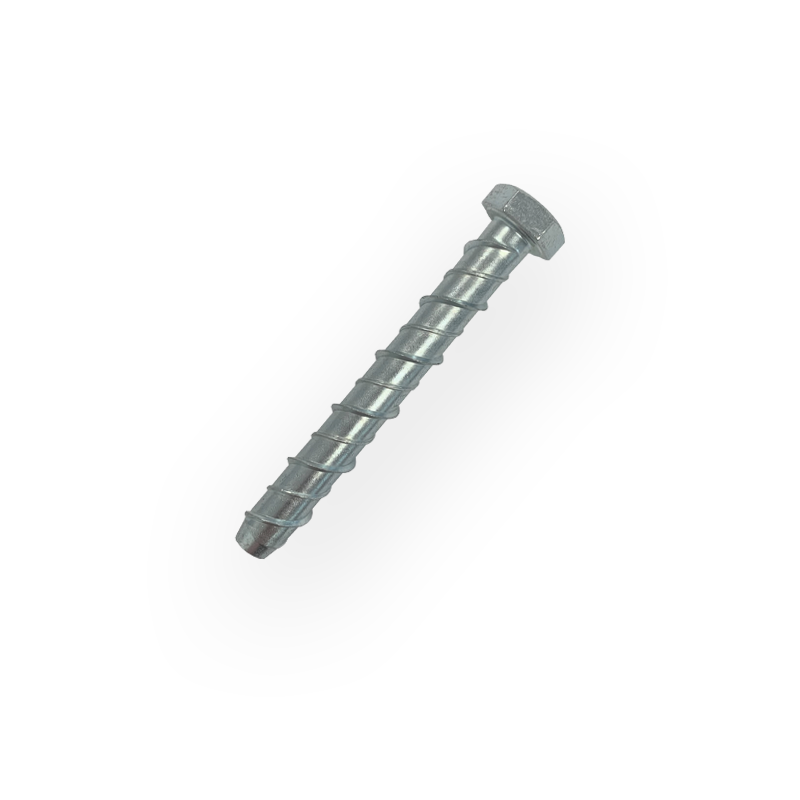

ETA Approved Hex Head Concrete Screw Bolts – CSBCE
£38.00 – £99.00 (Excluding VAT)
Product Designation :
ETA Approved CSB CE***
Type :
Masonry Screw Bolt
Material :
Mild Steel
Finish :
BZP (thickness 3~5 Microns)
Technical Information
The ETA Approved CS Bolt is a zinc plated self tapping anchor for use in a variety of base materials. The undercutting action provides a positive anchorage with no expansion forces. The wide range of types and sizes gives flexibility of choosing the correct anchor according to the fixture thickness.
For use in… (MUST clean out holes after drilling)
• Concrete C20/25 to C50/60
• Non-Cracked Concrete
• Hollow Concrete Planks
• Solid Brickwork
• Concrete Block
• Natural Stone
Features
• Undercutting Action
• Fast And Secure Installation
• Expansion Free
• Through Fixing
• High Performance
• Zinc Plated Minimum 5μm
Approval
European Technical Assessment – Option 1 Cracked Concrete ETA-15/0040 Fire Resistance
Load Data
Please contact us for further information on maximum Load Data (kN).
NB – Recommended loads are limited by suitability of base material and structure.
