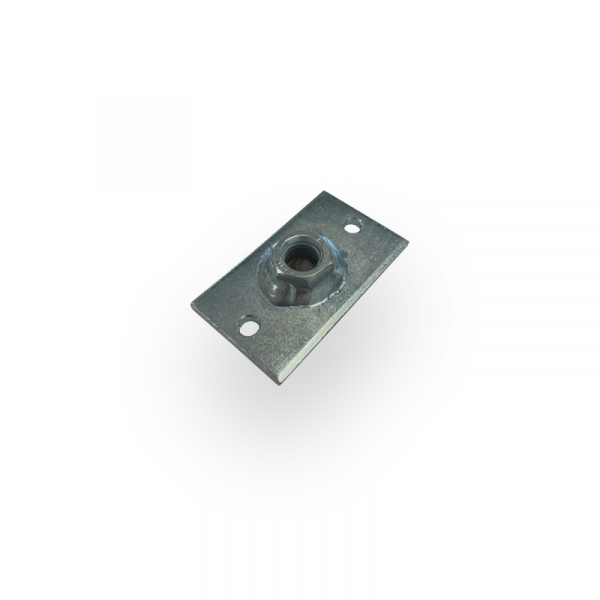

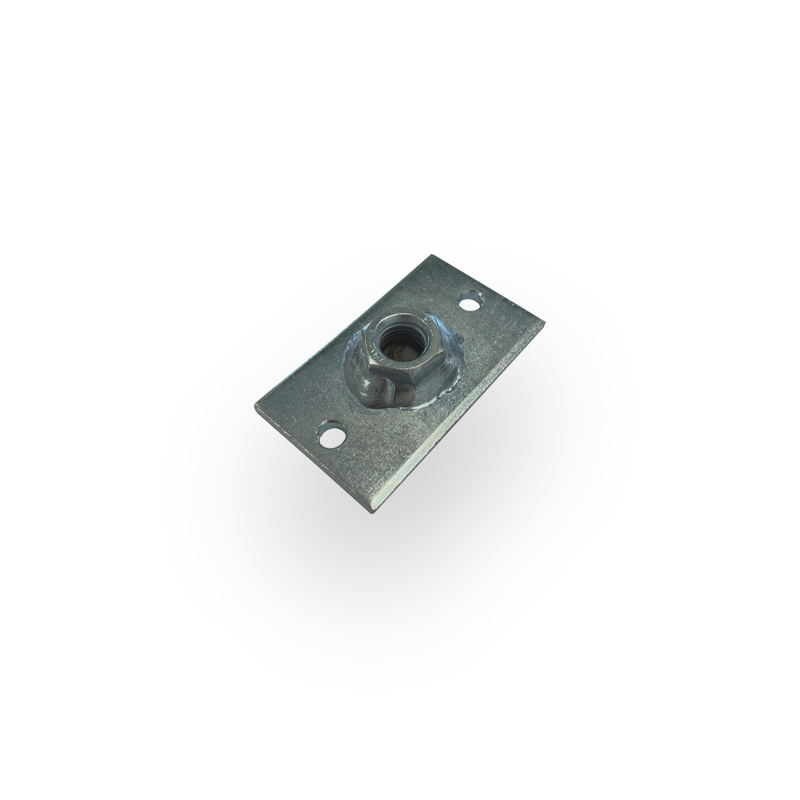

Twin 8mm Hole Bracket M16 (Short Nose) – SCB09X
£4.80 (Excluding VAT)
Product Designation :
SCB09X Twin 8mm Hole Bracket (Short Nose Version)
Type :
M16 Scaffold Adaptor Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light or Standard Duty, depending on fixings & structure
Technical Information
A SHORT NOSE version of the SCB09 bracket used for M16 ring bolt connections to Concrete, Masonry, Timber or Steel with limited space. Drilled with two 8mm holes at 70mm centres, they can be fixed with 6mm Concrete Screw Bolts, nylon plug & coach screw, self-drill screws, with threaded studs or sockets set in resin, with bars or bolts, nuts, washers etc passed right through the structure.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
