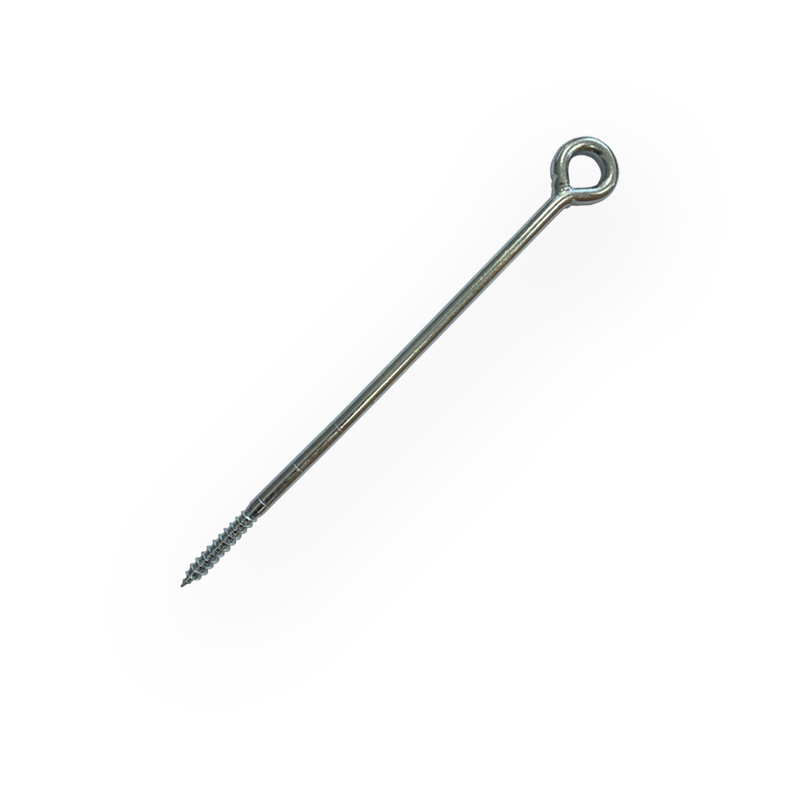

BOX(25) 12X300 Restraint Eye 23mm ID – SCE12300
£59.00 (Excluding VAT)
Product Designation :
SCE12300 Restraint Eye
Type :
Eye Type Screw with 12mm shaft & 23mm ID
Material :
Carbon Steel Bar
Finish :
Bright Zinc Plated (thickness 5~7 Microns)
Load Class (TG20) :
Light to Standard Duty
Technical Information
A light to standard duty through fixing used predominately in the Scaffold & Access market to secure scaffolding, cables, chains, ladders etc. Can be used in conjunction with a variety of 14mm nylon plugs for applications in concrete, solid bricks, hollow bricks, perforated bricks, aircrete, blocks etc. and timber (without plugs).
Dimensions
Gauge – M12
Shank & Thread Length (combined) – 300mm
Eye ID – 23mm
Thread Length Only – 65mm
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Installation Instructions
In masonry, drill hole to the correct diameter and depth to suit the nylon plug you are using. To achieve maximum load bearing capacity, the nylon fixing can only be used once and the screw must be set to the correct installation depth, according to the markings on the shaft of the screw. In timber applications, we recommend an 8mm pilot hole be drilled to aid insertion and avoid splitting.
NB – Recommended loads are limited by suitability of base material and structure.
