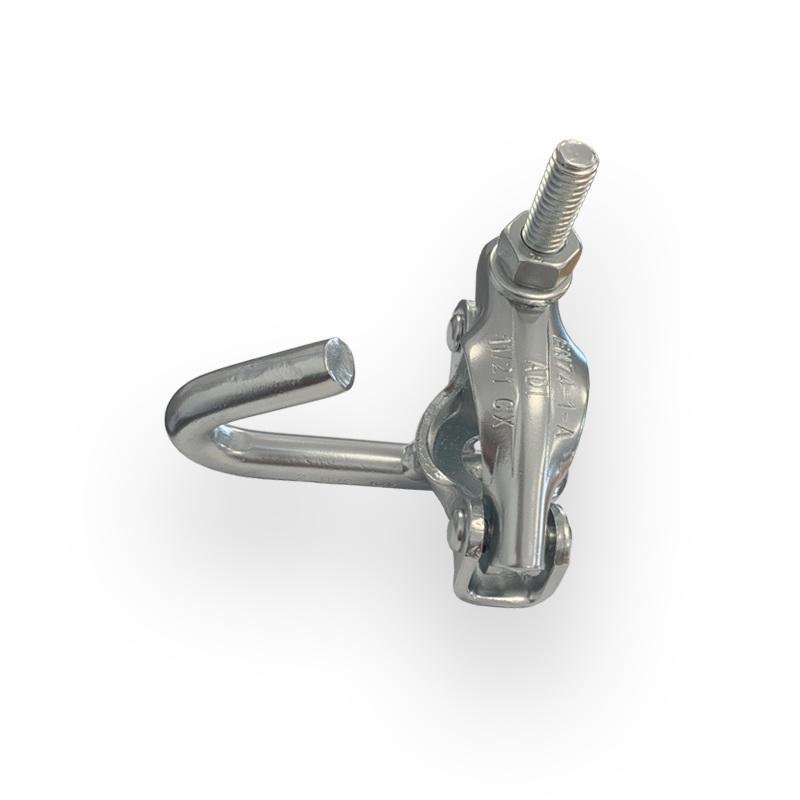

Internal Hook Coupler – SCB02
£5.89 (Excluding VAT)
Product Designation :
SCB02 Hook Coupler
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Medium Duty
Technical Information
With the new NASC/ TG4 guidance note advising against the use of Drop in Anchors in Brick, Block, Aircrete etc – this fitting is a modern day solution. The hook coupler allows a connection to all types of substrates with a variety of fixing types.
An INTERNAL hook assembly gives zero movement when the scaffold tube is butted right up inside the hook, hence locking it onto the head of the SCE eye. Also, by using the shortest SCE eye length, it gives the minimum possible tie distance away from the base material. Rendering, fixing of insulation, re-pointing, painting and all manner of external works are still possible with the tube not in contact with the facing structure.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The pressed steel fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
You may also like…
-

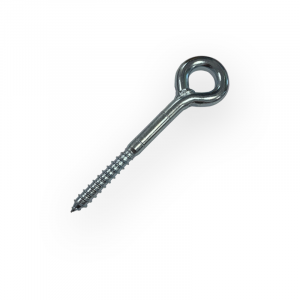

BOX(25) 12X120 Restraint Eye 23mm ID – SCE12120
£34.50 Add to basket -
SDS+ Hammer Bit – SDSP
£1.75 – £14.06 Select options This product has multiple variants. The options may be chosen on the product page -
Eye Anchor Impact Socket 1/2″ SQ Drive for 10-13mm Wire Diameter – HSDSEYE
£12.80 Add to basket -
Box (50) Rimless Nylon Plugs 14X75 – NP14075
£7.50 Add to basket -

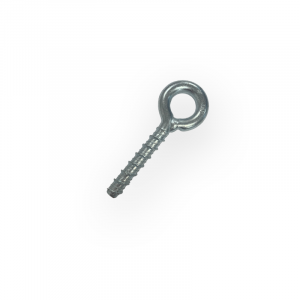

Box (25) 12×80 Small 23mm ID Eye Screw Bolt – EYB12080
