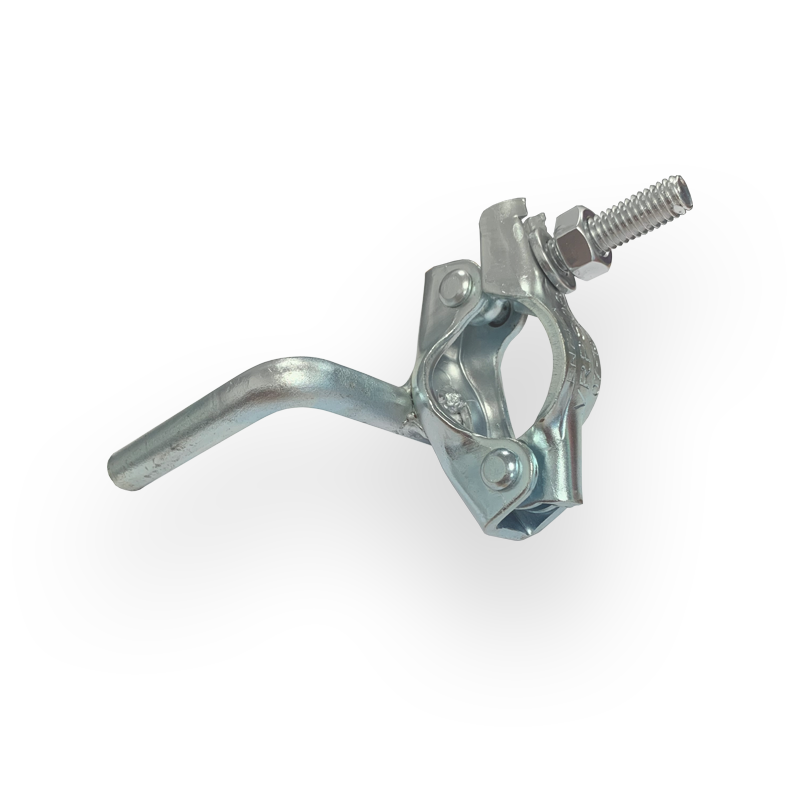

Angle Hook Coupler – SCB21
£6.50 (Excluding VAT)
Product Designation :
SCB21 Angled Hook Coupler
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Medium Duty
Technical Information
With the new NASC/ TG4 guidance note advising against the use of Drop in Anchors in Brick, Block, Aircrete etc – this fitting is a modern day solution. The hook coupler allows a connection to all types of substrates with a variety of fixing types.
An ANGLED hook allows the scaffold tube to be butted as close as possible to the base structure improving performance and aiding stability. Perfect for producing sheeted enclosures and for use in extreme heights or exposed areas.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The pressed steel fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
