Hook Tube Extension 1000mm – SCB57

£16.00 (Excluding VAT)

Product Designation :
SCB57 Tube Extension

Type :
Scaffold Bracket

Material :
Mild Steel

Finish :
Bright Zinc Plated (thickness 3~5 Microns)

SKU: SCB57 Category:

Technical Information

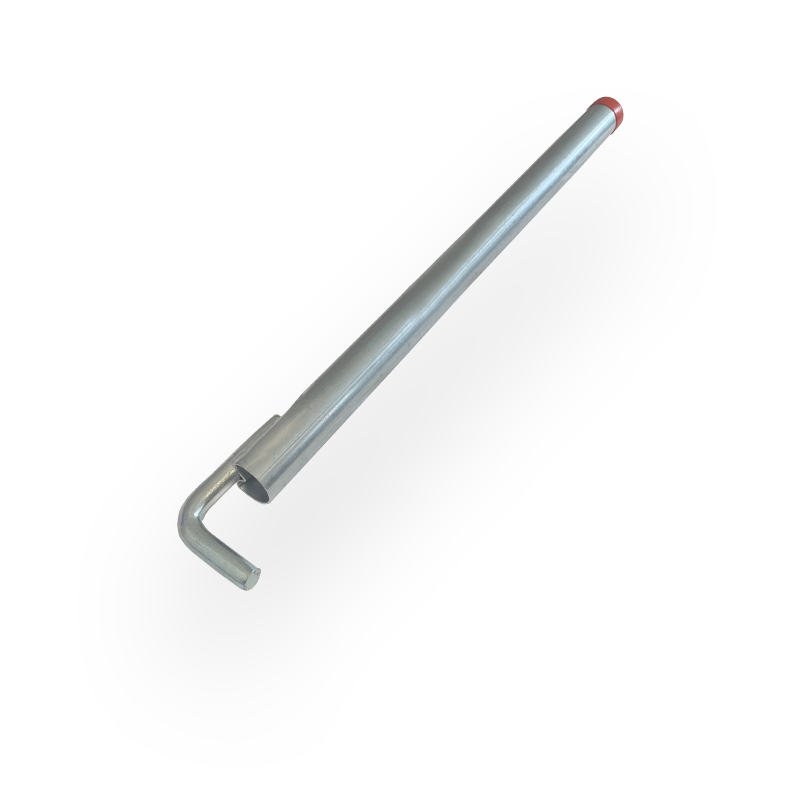

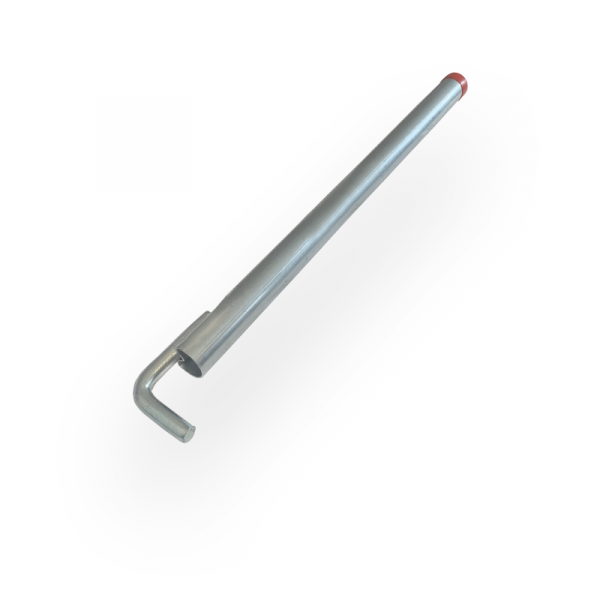

A Steel, Zinc Plated tube 48mm in diameter and 970mm long welded with a right angle hook 18mm diameter. This product is designed for connecting scaffolding to a smaller eye such as a Restraint Eye, Concrete Screw Bolt Eye or Eye Through Bolts.

Load Capability
Please contact us for further information on Load Data (kN).

Horizontal Loads (bending moments)
Please contact us for further information on horizontal loads/bending moments (kN).

Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.

NB – Recommended loads are limited by suitability of base material and structure.
