Fixings

Box (25) SRB12-120-150 52mm Eye Scaffold Screw Bolt – SRB12

Product Designation : SRB Type : SRB – 52mm Diameter Eye Material : Hardened Boron Steel Finish : Zinc Plated or Yellow Passivated

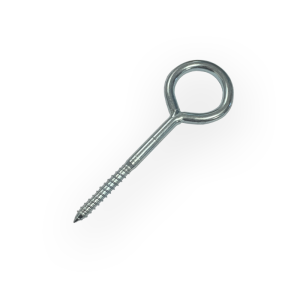

Box (25) 12×80 Small 23mm ID Eye Screw Bolt – EYB12080

Product Designation : EYB Type : CS Bolt - 23mm diameter EYE Version Material : Hardened Carbon Steel Finish : Bright Zinc Plated

Box (25) 12×75 Small Hook Screw Bolt – HYB12075

Product Designation : HYB Type : CS Bolt – Hook Version Material : Hardened Carbon Steel Finish : Zinc Plated or Yellow Passivated

Box (25) 10/12*118 CS Stud Screw ZF M12 Thread – 10mm Pilot Hole – CSS10118

Product Designation : CSS Type : CS Stud Screw with Metric Thread Material : Hardened Steel Finish : 500 Hours SST finish Load Class (TG20) : Light to Heavy Duty

Box (25) 10/12*138 CS Stud Screw ZF M12 Thread – 10mm Pilot Hole – CSS10138

Product Designation : CSS Type : CS Stud Screw with Metric Thread Material : Hardened Steel Finish : 500 Hours SST finish Load Class (TG20) : Light to Heavy Duty

Box (25) 10/12*208 CS Stud Screw ZF M12 Thread – 10mm Pilot Hole – CSS10208

Product Designation : CSS Type : CS Stud Screw with Metric Thread Material : Hardened Steel Finish : 500 Hours SST finish Load Class (TG20) : Light to Heavy Duty

Box (25) 10/12*248 CS Stud Screw ZF M12 Thread – 10mm Pilot Hole – CSS10248

Product Designation : CSS Type : CS Stud Screw with Metric Thread Material : Hardened Steel Finish : 500 Hours SST finish Load Class (TG20) : Light to Heavy Duty

Box (25) M16 Drop In Anchor BZP – DIA16Z

Product Designation : DIA Type : Drop In Anchor Material : Mild Steel Finish : Bright Zinc Plated (thickness 5~7 Microns) Load Class (TG20) : Light to Medium Duty

Box (25) M16 CE Approved Drop In Anchor BZP – DIACE16Z

Product Designation : DIA (CE Marked/Approved) Type : Drop In Anchor Material : Mild Steel Finish : Bright Zinc Plated (thickness 5~7 Microns) Load Class (TG20) : Light to Medium Duty

Setting Tool For M16 Drop In – ST16DIA

Product Designation : DIA Type : M16 Drop in Anchor Setting Tool Material : Mild Steel Finish : Bright Zinc Plated

Box (10) Rubber Scaff Anchor 16X80 – RSF16080

Product Designation : RSF Type : Re-usable Scaffold Anchor Material : PCP rubber & EN1A Zinc Plated Mild Steel Finish : Bright Zinc Plated (thickness 3~5 Microns) Load Class (TG20) : Standard Duty

Box (10) Spare Expander Sleeve – SF1610PZFO

Product Designation : SF1610PZFO Spare Sleeves Type : Re-usable Scaffold Anchor Sleeves Material : PCP rubber & EN1A Zinc Plated Mild Steel Finish : Bright Zinc Plated (thickness 3~5 Microns) Load Class (TG20) : Standard Duty
